Architectural Diagram

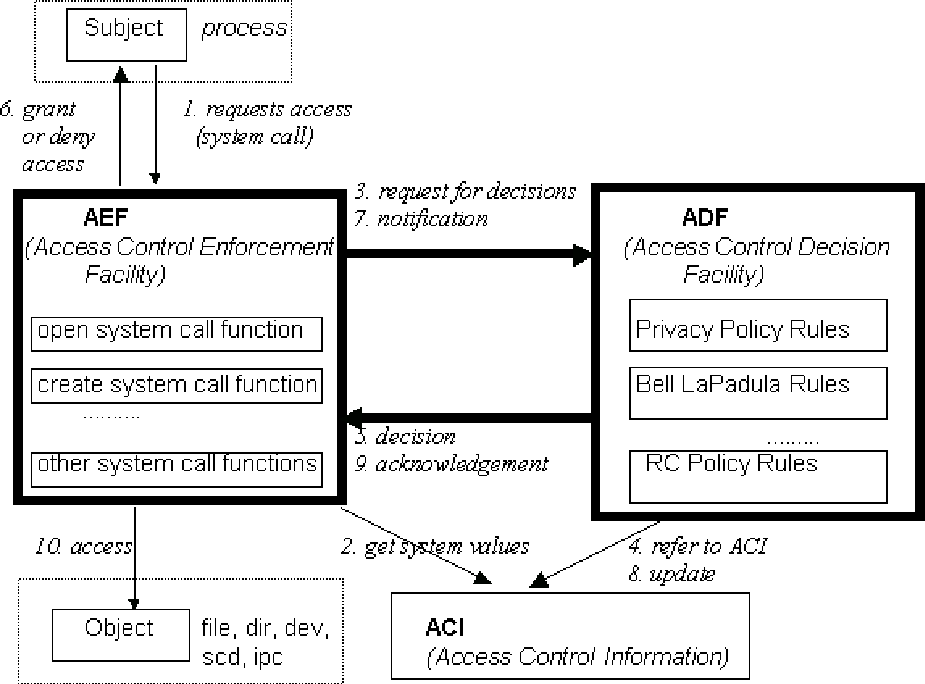

**Figure 1:** RSBAC Architecture
$\begin{figure} \begin{center} \leavevmode \epsfxsize 1.7\columnwidth \epsfbox {arch.eps}\end{center}\end{figure}$

Figure 1 on page

shows the RSBAC implementation in the Linux kernel.

A typical system call interception (AEF component) places two calls to ADF: a request for decision and, if access has been granted and the system call functionality has been successfully performed, a notification. ACI data is only updated on the notification call, because the system call might fail from other reasons.
